Point Cloud To BIM Services | Scan To BIM

High-standard point cloud processing to create informative and intelligent 3D point cloud models

Point cloud to BIM modeling is a practical way to create an as-is or as-built 3D model of a structure with all the additional details. Point cloud 3D models are intelligent BIM models that hold the concerned system's spatial, geometrical, and surrounding topographical information. The Scan to BIM Workflow utilizes parametric object-oriented modeling to generate high-level 3D BIM models from a 3D laser-scanned point cloud. The 3D scanning point cloud offers intuitive data used by sophisticated BIM software for parametric modeling. In addition, the vectorization of laser-scanned points gives a point cloud model that can be used as the basis of analysis for reconstruction, demolition, and topographic surveys.

Point Cloud To BIM Services | Scan To BIM

Convert point cloud to 3D model leveraging modern CAD capabilities

We offer expeditious conversion of point cloud to 3D model – parametric object-oriented modeling

Silicon Engineering Consultants LLC is a leading engineering CAD provider in the USA, offering a wide range of BIM outsourcing services. We have provided CAD | BIM services to AEC contractors, general contractors, fabricators, architects, and large-scale project companies for over a decade. We leverage the sophisticated 3D modeling software suite to provide you with point cloud BIM services. Furthermore, we understand the core needs of our clients and offer curated solutions. We convert point cloud data to a 3D model for old and new constructions. Generally, for new construction, scanning is done to create an as-built model of the structure built, providing hassle-free construction analysis of the system throughout the building lifecycle. We offer a range of point cloud modeling services suiting your needs :

  • Point To CAD Model – 3D CAD models are more straightforward than BIM models, used for general project visualization.
  • Point Cloud To BIM Modeling Services – point cloud to BIM conversion, advanced than CAD, follows parametric modeling, best for holistic R&D. Used to create As-built models of both old and new construction.

3D point cloud scanning services use state-of-the-art light detection and ranging (LiDAR) instruments to collect point cloud data. 3D scanning is helpful for architecture, structural, and EMP engineering. Talk with our engineers to learn more about the LiDAR scanning procedure.

Customer-centric point cloud scan to BIM – 3D scan to BIM services

We offer client-curated 3D scan to BIM services that follow a meticulous scan to BIM process for high-standard output at affordable costings

Silicon Engineering Consultants LLC, with a team of professional and experienced engineers, BIM technicians, and draft persons, offers you high-accuracy 3D scan to BIM services. We cover almost every engineering domain for parametric 3D modeling through point cloud data points. Our 3D scan to BIM modeling includes -

  • Architectural Engineering (facades – cladding – walls – exterior & interior – doors – windows
  • Structural Engineering (columns – beams – framings – foundation – trusses
  • MEPF Engineering (ductworks – piping systems – electrical systems – electrical panel and wiring – hydro pipes – fire systems)
  • Heritage Modeling – models and drawings for existing conditions
  • Infrastructure Engineering (city roads – bridges – tunnels - freeways)

SiliconThe process of renovation/reconstruction can be cumbersome. However, the data-driven decisions for proper planning, estimations, project feasibility, and material procurement depends upon the accuracy of the as-built data. That’s why we help our esteemed clients produce accurate point cloud BIM models with the required level of development (LOD 200-500) that help expedite the process with high proficiency.

Process your point cloud data to manageable information – employ REVIT® for REVIT® Point Cloud Modeling

create REVIT model from point cloud data for accurate as-built models and 2D drawings

We provide best-in-class REVIT point cloud services. Our experienced workforce leverage scan to BIM through REVIT to create information-rich and intelligent BIM models. We use high-performing systems for the scan to REVIT, resulting in a fast importing process of point cloud data.

We offer the following services in REVIT scan to BIM:

Convert Point Cloud
To 3D Model REVIT
Point Cloud Survey
Into REVIT
Point Cloud
To REVIT Model

We follow meticulous point cloud to REVIT workflow to deliver the finest existing condition modeling experience. We can work on various point cloud scan formats such as *.rcp, *.rcs, *.e57, *las.

Software Expertise

3D laser scanning – measured as-built survey for capturing accurate real-world information

Point cloud laser scanning helps you capture the as-is condition of any construction or structure to simply the AEC processes ten-fold

3D Architectural BIM Model

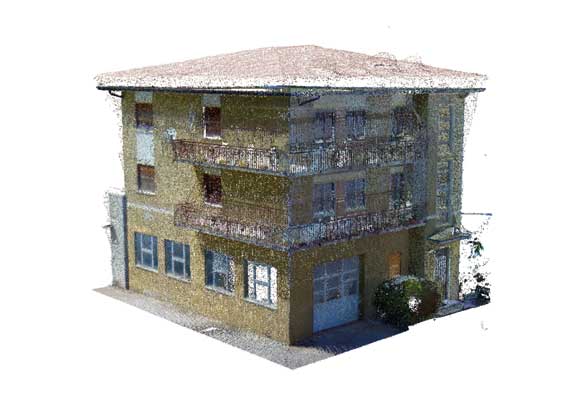

Laser scanning services are the process of using a LiDAR instrument to capture the geospatial points of a structure. The scope and importance of 3D laser scanning services are vast. The most common use of laser scanning by the AEC industry is for laser scan to BiM. Professionals use laser-scanned data to produce as-built 2D drawings, 3D models, and BIM models for simplified construction analysis and operations. BIM laser scanning saves surveying time, provides accurate results, facilitates holistic building analysis, and sets a precedent for renovation or demolition assessment. We offer proficient 3D laser scanning to BIM services to the AEC industry of the USA, helping them save time and costs.

Want to process point cloud to 3D model? Reach us to discuss your requirements and learn how scan to BIM modeling can benefit your project today! - Contact Us

\

Learn more about the purpose of the scan to bim in a construction project at our official blog.

Frequently Asked Questions

  • What is a scan to BIM workflow?
      Recreating accurate real-life information within the BIM model has become essential in construction projects. Cross-checking the existing conditions with the BIM model helps increase the project's overall efficiency. In simple terms, scan to BIM workflow captures or scans the real-life physical structure using high-grade LiDAR (Light Detection And Ranging) devices. The captured data is stored as a structured point cloud. The point cloud is then processed in CAD software like REVIT to output manageable information through 3D BIM models.
  • How do you convert point cloud data into 3D models?
      We use the capabilities of REVIT to produce accurate BIM models from a laser-scanned point cloud. Currently, the latest edition of REVIT supports *.rcp and *.rcs point cloud formats. First of all, we import the point cloud data into the REVIT. Then, we create multiple levels of the project building, set the correct positions for elements, and finally, tweak the different aspects of the 3D models for maximum accuracy.
  • What is the application of point cloud BIM modeling?
      Point cloud modeling is used for various purposes depending on the project phase and requirement. Scan to BIM can solve two major problems faced during the design phase and construction phases:
    • Design Phase: As-built data presented to the BIM modeler is often incomplete or unstructured, leading to time-consuming workflows with unreliable output. Errors in the BIM model can cause substantial delays and directly affect project costing. Scan-to-BIM workflows provide accurate real-time data for accurate 3D modeling and enable improved design decisions regarding the project.
    • Construction Phase: During the construction phase, scan-to-bim workflow helps verify and validate the data in BIM models. Manually verifying the model data with real-time construction is time consuming and challenging process. Scan to BIM helps in streamlined cross-checking between the as-built structure and as-designed BIM models hassle-free, saving time, money, and workforce.
    • Surveying Phase: Scan to BIM workflow can be adopted in the early stages of the project. Scan to BIM can help analyze the topographical and utility works of the site vicinity. In addition, new construction in challenging locations can significantly benefit from point cloud modeling.
  • What are the benefits of point cloud modeling/scan to BIM?
      Some of the benefits of the scan to BIM workflows:
    • Point cloud modeling enables improved building design and 3D model creation.
    • Scan to BIM helps Streamline the construction workflows.
    • Facilitate as-built clash detection and coordination.
    • Scan to BIM helps mitigate on-site hazards/risks.
    • Scan to BIM helps facility managers in improved documentation management. It also helps in making better decisions for renovations.
    • Scan to BIM helps document complex heritage structures hassle-free.
